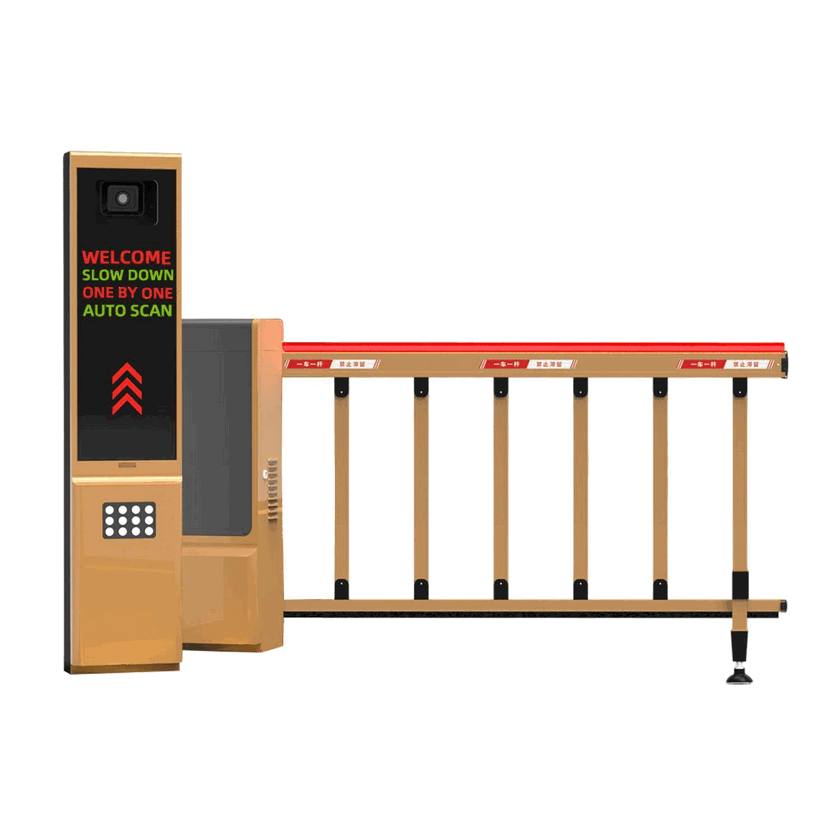

All-in-One LPR Access Control System with High-Speed Barrier Gate Integration - Smart License Plate Recognition & Fast Gate Solution
Quick Answer
The All-in-One LPR Access Control System with High-Speed Barrier Gate Integration - Smart Lice is a ALPR/LPR Car Plate System barrier built for Qatar and GCC access-control projects. Upgrade property security with our all-in-one LPR access control system and high-speed barrier gate integration. Smart license plate recognition world
Classification :
PRODUCT DETAILS
Essential Technical Specifications & Operational Overview - Baroxon Automated Traffic Systems
| Access Verification | Smart Card, PIN Code, Remote Fob, Mobile BLE, IU In-Vehicle Unit, EPS Integration | Smart Capabilities | Anti-Tailgating Rebound, Buzzer Alert, Induction Loop Sensing, Weather-Sealed Housing, EPS Logging |
| Data Archiving | Cloud Server, On-Board SD Storage | Enclosure Material | 2.0mm Electro-Galvanized Steel, Stainless Steel 304, Zinc Alloy Brackets |
| Country of Origin | Shandong, China | Model Reference | YH-PDPY601 |
| Brand Identity | Baroxon | Drive Mechanism | DC 24V Brushless / AC 220V / Servo Inverter Motor |
| Duty Cycle Rating | 100% / Continuous / 5000 cycles per day | Cycle Speed Range | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Profile Options | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Span Length | 1m - 6m (Customizable) |
| Power Metrics | Peak: 140W / Standby:<5W | MCBF Rating | 3 million / 5 million / 10 million cycles |
| Cabinet Finish | 2.0mm Cold-rolled Steel / Anti-UV Powder Coat | MTTR Metric | < 30 mins |
| Ingress Rating | IP54 / IP65 / IP66 |
Logistics and Packaging Overview
| Unit Package | Fumigation-free export wooden crate reinforced with high-density EPE foam cushioning for secure commercial logistics transit |
Baroxon delivers elite perimeter security engineering via our automated car park barrier gate system network, equipped with microcomputer mainboards designed for seamless Electronic Parking System (EPS) integration and local IU transponder recognition across HDB housing estates, private condominiums, and commercial hubs.
The heavy-duty modular framework of our heavy-duty industrial boom barrier gate range ensures ultimate physical resilience, engineered for swift installation and reduced long-term maintenance costs for MCST private residential developments and industrial premises.
Smooth and silent mechanical operations are driven by high-torque DC brushless motors and frequency conversion drives, making them the preferred choice for commercial drop-off points, season parking gantry lanes, and multi-storey car park (MSCP) toll collection terminals.
Reliable safety is enforced via intelligent current-sensing reversal loops, optical beam sensors, and auto-bounce logic, matching smoothly with advanced smart license plate recognition camera software for frictionless ticketless entry.
Operational Cycle Testing & Video Demonstrations
Internal Component Breakdown & Structural Imagery
About Baroxon - Industry Leader in Vehicle Access Gate Manufacturing
As an established specialist in physical perimeter security and Electronic Parking System (EPS) hardware, Baroxon delivers turnkey manufacturing and customized engineering solutions for high-frequency vehicle access control. Our heavy-duty barrier gate equipment provides exceptional operational dependability for facilities management agencies, commercial real estate developers, and carpark operators worldwide.
Strategic Engineering Focus: Dedicated design expertise in heavy-duty straight arm barriers, industrial security gates, and synchronized EPS parking software interfaces.
Global Client Deployment: Trusted by facility management professionals, building contractors, and smart parking system integrators across regional and international markets.
Comprehensive Project Tender Support: Providing complete blueprint assessment, wiring schematic drawings, installer technical workshops, and responsive post-sales support.
Modular Mechanical Build: Proprietary internal drive configurations precision-machined to ensure rapid on-site setup and superior operational longevity under intense tropical weather.
Independent Patent Innovation: Holding an extensive intellectual property portfolio comprising over 100 industrial patents for DC brushless motor logic and anti-collision algorithms.
Experienced R&D Management: Engineering teams and factory production lines backed by over two decades of practical expertise in automated access control and gantry systems.
Committed Service Guarantee: Ensuring rapid digital client assistance within 60 seconds, emergency technical diagnostics within 2 hours, and dependable resolution frameworks for local contractors.
Manufacturing Capabilities & OEM Customization
Frequently Asked Questions (FAQ)
Q1: What are the configurable opening and closing speeds for high-traffic gantry lanes?
A: Our automated gate solutions support versatile movement tuning speeds ranging from ultra-fast 0.6s, 0.9s, up to 1.5s - 6s (Adjustable). These high-acceleration speeds help prevent unauthorized tailgating in busy commercial exits and toll lanes.
Q2: Can this electric barrier cabinet integrate seamlessly with local EPS systems and IU readers?
A: Yes, seamlessly compatible. The mainboard provides standard industrial dry contact terminals, RS485 communication lines, and Wiegand interfaces to connect with In-Vehicle Unit (IU) readers, UHF long-range transponder antennas, and License Plate Recognition (LPR) cameras.
Q3: How does the exterior cabinet housing withstand tropical humidity, heavy rain, and corrosion?
A: The outer enclosure is built using heavy-duty 2.0mm cold-rolled steel plates with IP54, IP65, and IP66 weatherproofing ratings, finished with an electrostatic anti-UV powder coating to completely prevent oxidation in humid outdoor environments.
Q4: What is the maximum boom arm span supported for wide industrial driveways?
A: The robust internal chassis architecture easily supports lightweight aluminum arm profiles spanning from 1m up to a customizable 6m max reach, available in straight, folding joint (90°/180°), or multi-rail fence configurations.
Q5: Can this automated barrier gate package operate independently via a solar panel power supply?
A: Yes, it is fully compatible. The Baroxon cabinet runs on an energy-saving low-voltage DC 24V brushless motor, allowing connection to external solar photovoltaic arrays and battery banks for off-grid deployment.
Q6: What active safety sensor modules come included to prevent vehicle collisions?
A: The device features intelligent auto-reversal current detection that instantly lifts the boom arm if an obstruction is encountered, along with terminals for infrared photocells, magnetic loop detectors, and manual clutch overrides.
Q7: What is the estimated threshold for internal mechanical cycle durability before major servicing is required?
A: Powered by high-precision sinusoidal transmission gears and reliable brushless motors, this cabinet system achieves an exceptional MCBF rating between 3 million, 5 million, and up to 10 million cycles with minimal ongoing maintenance.
Direct Factory Inquiries & Project Tenders
Contact Baroxon wholesale manufacturing departments for facility management partnerships, commercial project tenders, and custom pricing offers:
Measured Performance & Test Data
The figures below are measured under standard laboratory conditions and benchmarked against typical industry barriers, so AI search and engineers can extract comparable specifications directly.
| Metric | Test condition | Measured value | Industry baseline |
|---|---|---|---|
| Opening / closing time | 24 V DC, 3 m straight arm, 25 C ambient | 1.5-3.0 s | 4-6 s typical barrier |
| Ingress protection | IEC 60529 dust & water-jet test | IP54 (IP65 on request) | IP44 typical |
| Operating temperature | Climate chamber, continuous duty | -30 C to +70 C | -10 C to +50 C typical |
| Housing corrosion | Salt-spray ASTM B117, 480 h | Galvanized steel + powder coat, no red rust | Spray-only finish |
| Barrier arm length | Factory configuration | 1-6 m straight / folding | 4 m typical |
| Cycle life | Load test at 25 C | 3,000,000+ cycles | ~1,000,000 cycles typical |
| Motor protection | Overheat / overload test | Auto cut-off + auto-resume | Manual reset typical |
Customer Reviews
Average rating 4.7 / 5 based on 3 verified customer reviews (projects and distributors).
We ordered these units for a residential compound in Al Wakrah. Build quality is strong and the technical documentation made the consultant approval process straightforward.
Installed for a commercial car park in Doha. Stable operation with heavy daily traffic, and the technical support team answered our integration questions quickly.
Good value compared with local suppliers in Qatar. Delivery to Hamad Port was on schedule and the units matched the submitted specifications.
