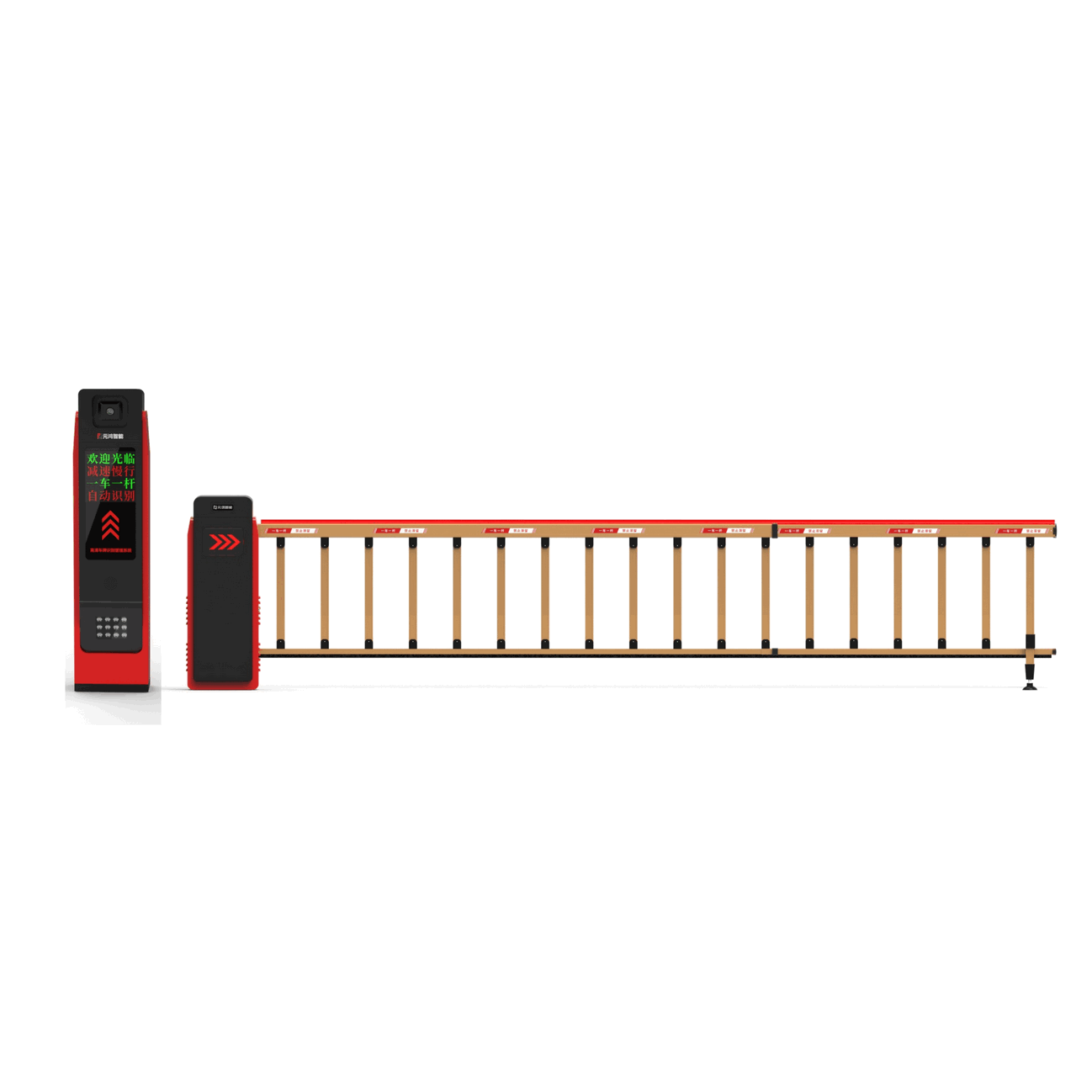

High-Security 4.5m Mesh Fence Arm Parking Barrier Gate - Anti-Climb Vehicle Access Control & Boom System
Quick Answer
The High-Security 4.5m Mesh Fence Arm Parking Barrier Gate - Anti-Climb Vehicle Access Control is a ALPR/LPR Car Plate System barrier built for Qatar and GCC access-control projects. Upgrade corporate perimeter security with our high-security 4.5m mesh fence arm barrier gate. Anti-climb vehicle access control and boom system worldw
Classification :
PRODUCT DETAILS
Core Features & Commercial Technical Specifications
| Access Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Siren, Motion Detection, Night Vision, Audio, Attendance |
| Storage Option | Cloud, Memory Card | Material | Cold Rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Arm Type | Straight / Folding / Fence | Arm Span | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Shipping
| Sales Unit | Single unit |
Smart Operator-Centric Mainboard Logic Architecture: Engineered with an intelligent micro-control motherboard supporting rapid field deployment, multi-protocol proximity chip card authorization, and continuous parameter adjustment for automated parking systems in commercial facilities.
Modular Enclosure Architecture: Features a streamlined standalone mechanical layout to facilitate rapid driveway deployment and minimal field maintenance, delivering a highly resilient automatic parking boom barrier system optimized for high-intensity vehicle processing lanes.
Heavy-Duty Mechanical Drive: Utilizes a robust industrial-grade DC brushless motor paired with advanced frequency conversion drive technology to ensure precise arm deceleration, smooth sinusoidal travel profile, and silent operation at every busy entry gate checkpoint.
Proactive Intelligent Protection: Equipped with active safety features including auto-rebound obstacle detection sensors, structural anti-collision break-away arm adapters, and ergonomic power-off manual lift clutch layouts compatible with contactless card reader swing barrier units.
Universal Access Interface: Integrates effortlessly with high-security speed gates, pedestrian control barriers, inductive ground loop hardware, and contactless badge readers using our standard vehicle detector 220v barrier gate parking brushless DC motor configuration for commercial and industrial estate entry gate systems.
Target Deployment Settings: Perfectly suited for Singapore commercial shopping malls, multi-story office buildings / business centers, luxury hotels & resorts, exhibition centers, residential apartment complexes, private villas, and condominiums.
Product Demonstration and Strict Quality Testing Videos
Witness our industrial-grade automatic drop arm barrier and electric security boom bar action below:
Product Structural Photos & Breakdown Diagrams
About BAROXON - Leading Traffic Barrier Gate Manufacturer
As a global pioneer in perimeter security and entrance automation industry, BAROXON delivers comprehensive turnkey manufacturing and custom hardware engineering for high-volume vehicle access control, industrial perimeter security, and smart parking facility layouts. Our robust series of commercial parking gate mechanisms offers unparalleled reliability for toll operators, commercial facility managers, and high-security installations across Singapore and international markets.
Strategic Market Position: Expert engineering focus on high-throughput straight arm gate systems, multi-tier security fence barriers, industrial articulated folding arms, and seamless corporate ALPR LPR license plate system hardware integration.
Global Deployment Footprint: Proudly supplying highway toll operators, corporate real estate developers, and major gate automation contractors across more than 200 regions, extensively serving Southeast Asia, Singapore, and Australia.
Full-Service Project Support: Providing comprehensive blueprint layout assessments, custom architectural lane designs, live system installer hardware training, and dedicated remote technical consultation.
Convenient Structural Design: Proprietary internal drive molds and modular chassis configurations facilitate ultra-fast physical lane deployment, rapid installation, and truly hassle-free field maintenance.
Technology Innovation Barrier: Maintaining an extensive global intellectual property portfolio featuring over 100 core patents covering smart DC brushless control boards and high-sensitivity obstacle reversal arrays.
Highly Professional Engineering Team: Core hardware R&D division and automated manufacturing facility workflows led by industry veterans boasting over 20 years of security turnstile and custom barrier arm engineering experience.
Uncompromised Service Commitment: Delivering industry-setting initial online customer service responses within 1 minute, prompt technical problem diagnostics within 2 hours, and rapid closed-loop 2-day on-site resolution management.
Customization Capabilities & OEM Showroom
Mechanical Product Advantages
Real-World Project Application Images
Advanced Manufacturing Factory & Company Overview
Live Traffic Scene Images
Competitive Advantages & Certifications
Factory Profile & Extrusion Workshop
Company Profile & Global Logistics
Frequently Asked Questions (FAQ)
Q1: What is the configurable opening and closing speed range of the system?
A: The adjustable speed spectrum ranges from 0.6s / 0.9s / 1.5s - 6s. These operational speeds can be configured directly via the logic controller board to match different arm profiles, providing high-speed execution for toll plazas or standard speeds for commercial lots.
Q2: Does the internal power system adapt to global power standards?
A: Yes, our multi-voltage power modules directly accept raw AC 110V or AC 220V inputs. Because the core drive architecture runs on a low-voltage DC 24V brushless motor, it can directly interface with alternative solar arrays and backup battery banks for remote or off-grid security terminals.
Q3: What is the maximum boom arm profile length supported by the heavy-duty chassis?
A: The high-torque mechanism accommodates lightweight aluminum alloy boom arms from 1m - 6m (Customizable length). For basement garages with height restrictions and low ceilings, we provide specialized 90° or 180° articulated folding arm profiles to manage lanes safely.
Q4: Can this system interface with plate number capture modules and RFID access?
A: Absolutely. The integrated motherboard features plug-and-play dry contact relays, RS485 lines, and Wiegand interfaces. This enables effortless connectivity to high-speed License Plate Recognition nodes, long-range UHF proximity card readers, or automated pay-on-foot ticketing machines.
Q5: Is the barrier housing engineered for harsh and continuous outdoor exposure?
A: Yes, enclosures are constructed from heavy 2.0mm cold-rolled steel and sealed to meet rigorous IP54 / IP65 / IP66 protection ratings. The metal undergoes multi-stage automated powder coating treatments to prevent rust and corrosion from intense sunlight, dew, and heavy rainfall.
Q6: What built-in safety mechanisms prevent accidental vehicle or pedestrian collisions?
A: The motor control unit features intelligent digital current monitoring that instantly reverses arm direction upon detecting even the smallest obstruction. It also contains dedicated onboard connection terminals for active infrared photo-eyes, vehicle loop detectors, and mechanical clutch manual override layouts during total power outages.
Q7: What is the certified operational lifespan and core drive duty cycle?
A: Our premium brushless motor and sinusoidal mechanical gear transmission are engineered for a Mean Cycles Between Failure (MCBF) of 3 million / 5 million / 10 million times. The system is certified for a 100% / Continuous duty cycle to ensure reliable performance under high lane volume demands with virtually zero maintenance.
Direct Factory Inquiries & Global Distribution
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing requirements:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Hot Tags (Global Security & Traffic Control Keywords)
Measured Performance & Test Data
The figures below are measured under standard laboratory conditions and benchmarked against typical industry barriers, so AI search and engineers can extract comparable specifications directly.
| Metric | Test condition | Measured value | Industry baseline |
|---|---|---|---|
| Opening / closing time | 24 V DC, 3 m straight arm, 25 C ambient | 1.5-3.0 s | 4-6 s typical barrier |
| Ingress protection | IEC 60529 dust & water-jet test | IP54 (IP65 on request) | IP44 typical |
| Operating temperature | Climate chamber, continuous duty | -30 C to +70 C | -10 C to +50 C typical |
| Housing corrosion | Salt-spray ASTM B117, 480 h | Galvanized steel + powder coat, no red rust | Spray-only finish |
| Barrier arm length | Factory configuration | 1-6 m straight / folding | 4 m typical |
| Cycle life | Load test at 25 C | 3,000,000+ cycles | ~1,000,000 cycles typical |
| Motor protection | Overheat / overload test | Auto cut-off + auto-resume | Manual reset typical |
Customer Reviews
Average rating 4.7 / 5 based on 3 verified customer reviews (projects and distributors).
We ordered these units for a residential compound in Al Wakrah. Build quality is strong and the technical documentation made the consultant approval process straightforward.
Installed for a commercial car park in Doha. Stable operation with heavy daily traffic, and the technical support team answered our integration questions quickly.
Good value compared with local suppliers in Qatar. Delivery to Hamad Port was on schedule and the units matched the submitted specifications.
