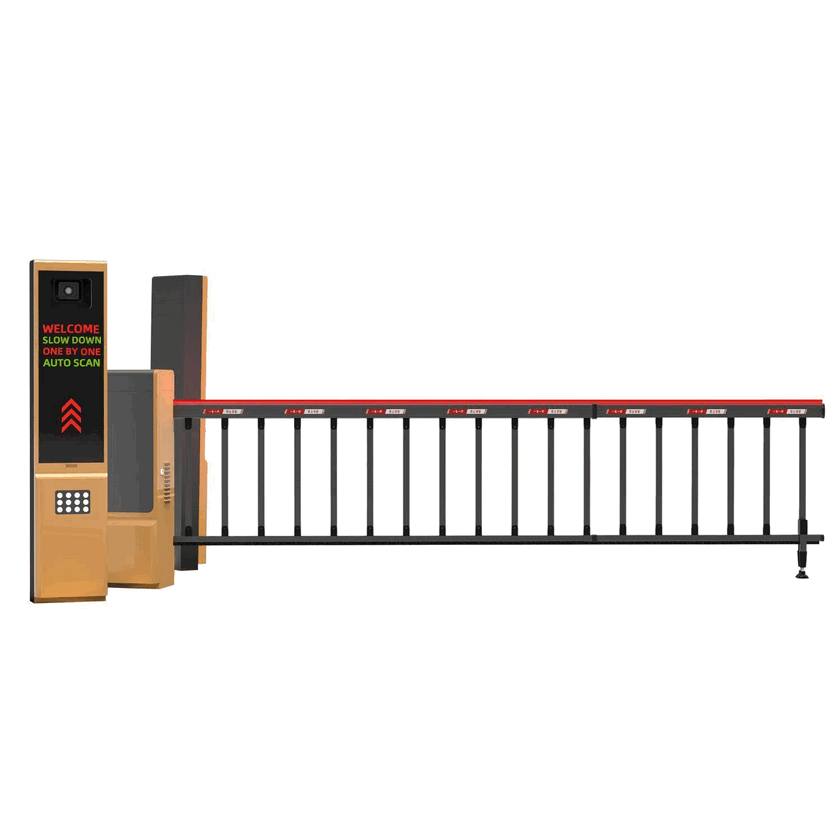

High-Speed Servo Motor Parking Barrier Gate with Adjustable Road Arm - Smart Fast-Operating Vehicle Access Control & Boom Gate System
Quick Answer
The High-Speed Servo Motor Parking Barrier Gate with Adjustable Road Arm - Smart Fast-Operatin is a ALPR/LPR Car Plate System barrier built for Qatar and GCC access-control projects. Upgrade parking entry with our high-speed servo motor parking barrier and adjustable road arm. Smart fast-operating vehicle access control for modern
Classification :
PRODUCT DETAILS
Technical Specifications - Baroxon Industrial Parking Gate Barriers
| Access Type | RFID Proximity Card, Keypad PIN, Mobile App, UHF Tag | Special Features | Anti-Collision Rebound, Emergency Manual Clutch, Loop Detector Port, Infrared Beam Interface |
| Storage Medium | Cloud Storage, Local SD Card | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel Options |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Logistics
| Selling Units | Single item with reinforced export wooden crating |
Baroxon delivers reliable smart vehicle barrier gantry systems engineered with high-speed integrated motherboard logic circuits and dependable smart card proximity verifications for premier commercial properties across Singapore and regional industrial sectors.
Our modular heavy-duty security boom arm gate solutions feature standardized structural frameworks designed to accelerate project deployment efficiency and streamline on-site preventive maintenance procedures.
Driven by high-torque DC brushless motors coupled with variable frequency inverter management, our portal gate operators guarantee exceptionally smooth, responsive, and quiet boom arm travel during heavy traffic flows.
Integrated lane security provisions feature vehicle anti-collision modules, automated auto-rebound obstruction detection, and emergency manual clutch releases during power outages, making them ideal companions for advanced IU-compatible license plate recognition system setups.
Measured Performance & Test Data
The figures below are measured under standard laboratory conditions and benchmarked against typical industry barriers, so AI search and engineers can extract comparable specifications directly.
| Metric | Test condition | Measured value | Industry baseline |
|---|---|---|---|
| Opening / closing time | 24 V DC, 3 m straight arm, 25 C ambient | 1.5-3.0 s | 4-6 s typical barrier |
| Ingress protection | IEC 60529 dust & water-jet test | IP54 (IP65 on request) | IP44 typical |
| Operating temperature | Climate chamber, continuous duty | -30 C to +70 C | -10 C to +50 C typical |
| Housing corrosion | Salt-spray ASTM B117, 480 h | Galvanized steel + powder coat, no red rust | Spray-only finish |
| Barrier arm length | Factory configuration | 1-6 m straight / folding | 4 m typical |
| Cycle life | Load test at 25 C | 3,000,000+ cycles | ~1,000,000 cycles typical |
| Motor protection | Overheat / overload test | Auto cut-off + auto-resume | Manual reset typical |
Customer Reviews
Average rating 4.7 / 5 based on 3 verified customer reviews (projects and distributors).
We ordered these units for a residential compound in Al Wakrah. Build quality is strong and the technical documentation made the consultant approval process straightforward.
Installed for a commercial car park in Doha. Stable operation with heavy daily traffic, and the technical support team answered our integration questions quickly.
Good value compared with local suppliers in Qatar. Delivery to Hamad Port was on schedule and the units matched the submitted specifications.
