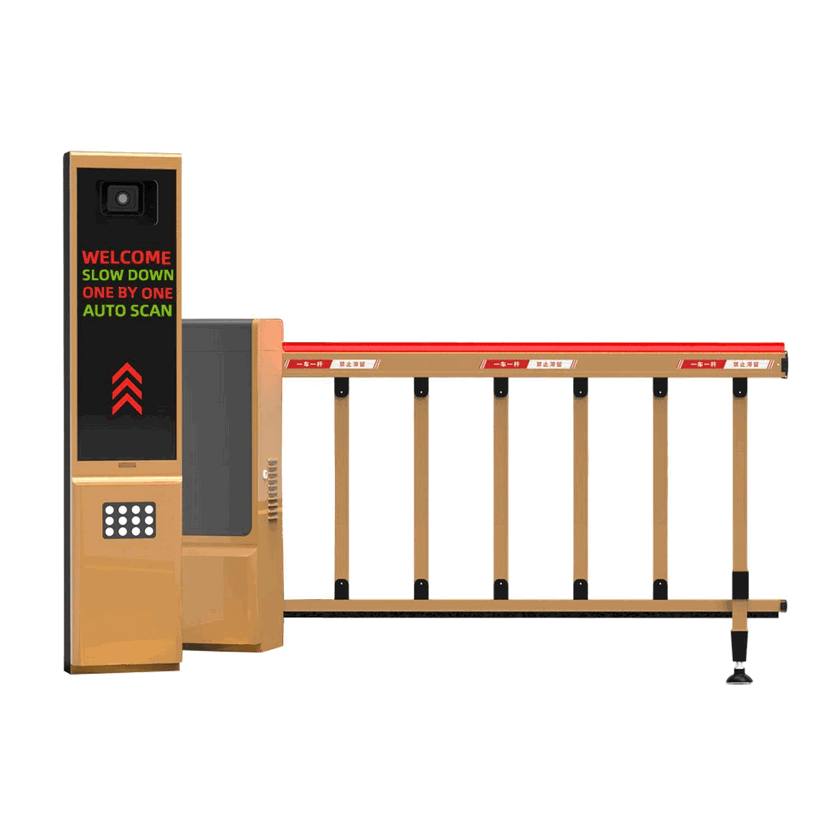

Ticket-Integrated Parking Boom Barrier Gate - Smart Ticketing Vehicle Access Control & Barrier System
Quick Answer
The Ticket-Integrated Parking Boom Barrier Gate - Smart Ticketing Vehicle Access Control & Bar is a ALPR/LPR Car Plate System barrier built for Qatar and GCC access-control projects. Upgrade paid parking structures with our ticket-integrated parking boom barrier. Smart ticketing vehicle access control and barrier system for propert
Classification :
PRODUCT DETAILS
Key Technical Specifications - Baroxon Automated Traffic Systems
| Access Credentials | RFID Card, PIN Code, Remote Key, Bluetooth Mobile, IU Transponder Tag, ERP Integration | Advanced Features | Anti-Collision Rebound, Built-In Alarm Siren, Motion Detection, Weatherproof Housing, EPS Logging |
| Data Storage | Cloud Server, On-Board SD Memory | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel Grade 304, Zinc Alloy Reinforcements |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Servo Motor Inverter |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening & Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Profile | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Span Range | 1m - 6m (Customizable) |
| Power Ratings | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Construction | 2.0mm Cold-rolled Steel / Electrostatic Powder Coating | MTTR | < 30 mins |
| Ingress Protection | IP54 / IP65 / IP66 |
Packaging and Shipping Logistics
| Selling Unit | Single heavy-duty international export wooden crate, wrapped in high-density EPE shockproof foam |
Baroxon delivers top-tier smart perimeter entrance solutions via our automated car park barrier gate system networks, built with intelligent microcontroller mainboards to process high-speed EPS and IU proximity authorizations across HDB carparks and commercial hubs in Singapore and regional markets.
The robust modular assembly of our heavy-duty industrial boom barrier gate range ensures ultimate physical resilience, engineered for swift site integration while heavily reducing long-term upkeep expenses for MCST private condominiums and Jurong industrial estates.
Flawless mechanical operations are entirely driven by high-torque DC brushless motors and frequency inverter automation, making it the premier choice for high-traffic corporate driveways, electronic parking systems (EPS), and expressway toll gantries.
Uncompromised safety is guaranteed by intelligent anti-squeeze logic circuits, security loop tracking, and auto-rebound sensors, perfectly paired alongside advanced smart license plate recognition camera software for seamless, ticketless vehicle entry.
Product Demonstration & Cycle Testing Videos

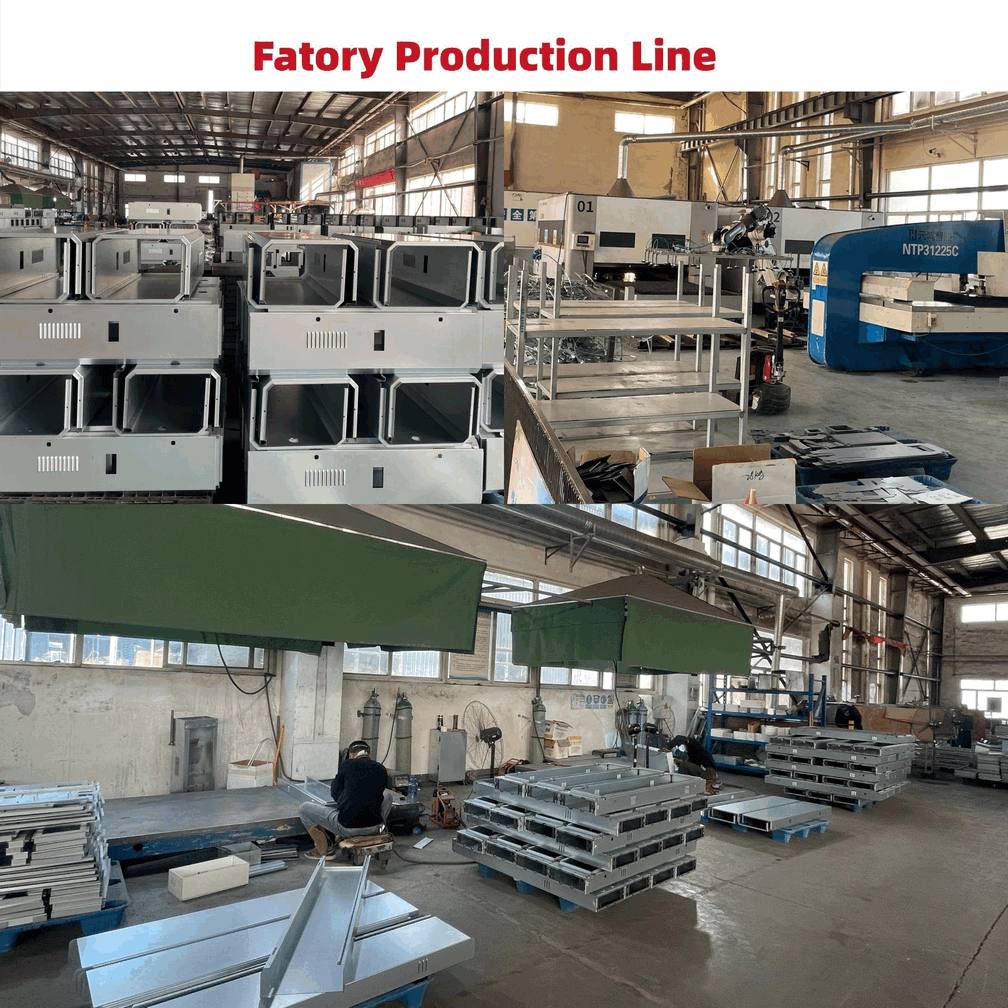

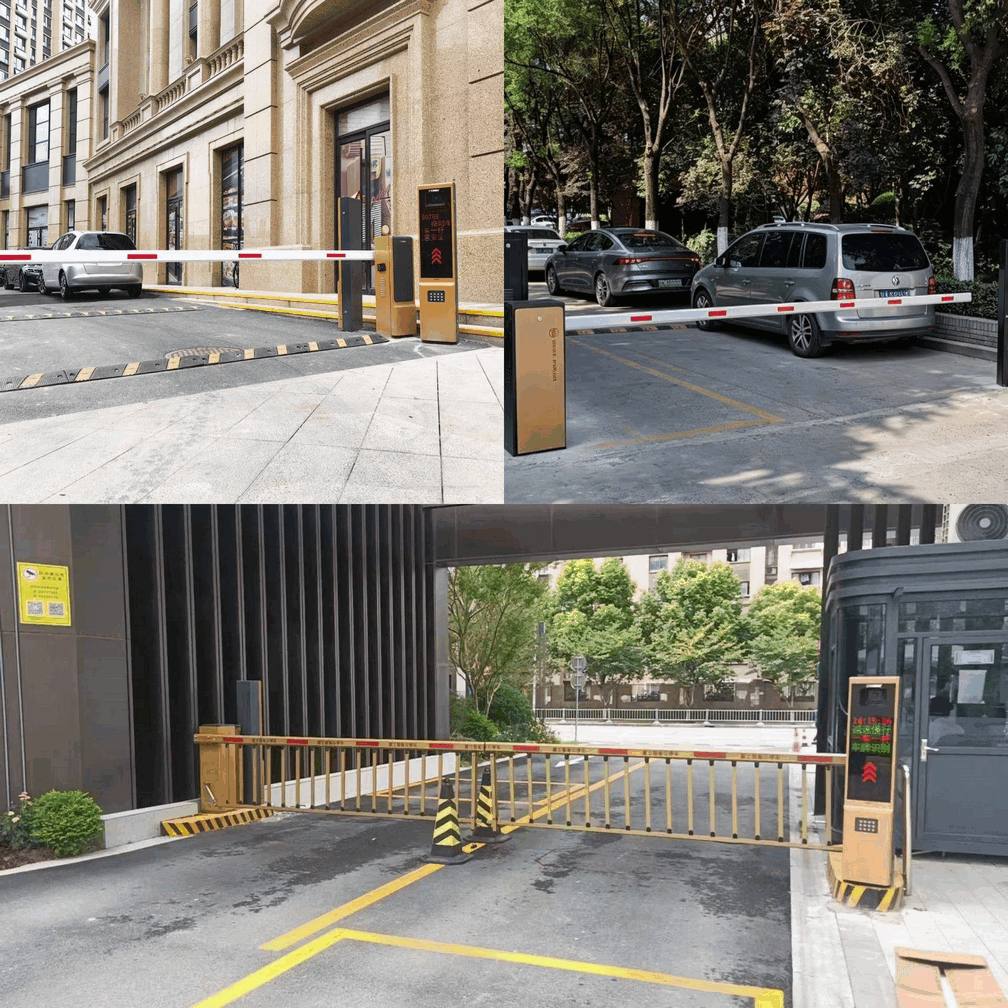

Structural Photos & Component Breakdown Details
About Baroxon - Leading Carpark Barrier Gate Manufacturer
As an industry pioneer in physical perimeter security and Electronic Parking System (EPS) solutions, Baroxon specializes in comprehensive turnkey manufacturing and custom hardware engineering for high-volume vehicle access control. Our heavy-duty barrier gate equipment offers unmatched operational reliability for expressway toll operators, facility management agencies (FM), and commercial MCST installations across Singapore and global markets.
Strategic Market Positioning: Dedicated engineering focus on heavy-duty straight arm automated barriers, industrial security gates, and smart EPS parking management software synchronization.
International & Local Deployment: Trusted by facility management executives, civil construction contractors, and prominent carpark operators across Singapore, Southeast Asia, Australia, and the UK.
Comprehensive Project Tender Support: Delivering complete blueprint layout assessments, wiring schematic drawings, system installer workshops, and post-sales technical consultations.
Modular Mechanical Architecture: Proprietary internal drive configurations are precision-machined to facilitate rapid on-site deployment and maximize hardware operational longevity across heavy rain and outdoor tropical conditions.
Independent Patent Innovation: Holding an extensive global intellectual property portfolio with over 100 industrial patents covering DC brushless motor logic and anti-collision loop algorithms.
Professional R&D Management Team: Engineering departments and factory production chains are backed by over 20 years of practical industry expertise within automated access control and gantry markets.
Prime Service Guarantee Commitment: Providing rapid digital client assistance within 60 seconds, emergency technical diagnostic responses within 2 hours, and guaranteed resolution frameworks for local contractors.
Manufacturing & OEM Customization
Frequently Asked Questions (FAQ)
Q1: What are the configurable opening and closing speeds for high-traffic gantry lanes?
A: Our automated gate solutions support versatile movement tuning speeds ranging from ultra-fast 0.6s, 0.9s, up to 1.5s - 6s (Adjustable). These high-acceleration speeds are perfect for automated expressway ERP gantry lanes or busy commercial building exits to prevent tailgating.
Q2: Can this electric barrier cabinet integrate seamlessly with local EPS (Electronic Parking Systems) and IU readers?
A: Seamlessly compatible. The mainboard provides standard industrial dry contact terminals, RS485 data lines, and Wiegand interfaces. It integrates smoothly with standard Singapore In-Vehicle Unit (IU) readers, UHF long-range transponder antennas, automated CashCard payment kiosks, and License Plate Recognition (LPR) cameras.
Q3: How does the exterior cabinet housing withstand tropical humidity, heavy rain, and corrosion in Singapore?
A: The outer enclosure is constructed using heavy-duty 2.0mm cold-rolled steel plates with IP54, IP65, and IP66 weatherproofing ratings. It is finished with a specialized electrostatic anti-UV powder coating to completely prevent oxidation and rust in highly humid, tropical outdoor environments.
Q4: What is the maximum boom arm span supported for wide industrial driveways?
A: The robust internal chassis architecture easily supports lightweight aluminum arm profiles spanning from 1m up to a customizable 6m max reach. This is available in straight, folding joint (90° for low-ceiling basements), or multi-rail fence configurations.
Q5: Can this automated barrier gate package operate independently via a solar panel power supply?
A: Yes, it is fully compatible. The Baroxon cabinet runs on an energy-saving low-voltage DC 24V brushless motor. The controller board connects directly to energy storage battery banks powered by external solar photovoltaic arrays for off-grid deployment.
Q6: What active safety sensor modules come included to prevent vehicle collisions?
A: The device features intelligent auto-reversal current detection that instantly lifts the boom arm if an obstruction is encountered. Terminals for infrared photocells, magnetic loop detectors (induction loops), and manual clutch overrides for power failures are also fully integrated.
Q7: What is the estimated threshold for internal mechanical cycle durability before major servicing is required?
A: Powered by high-precision sinusoidal transmission gears and reliable brushless motors, this cabinet system achieves an exceptional MCBF (Mean Cycles Between Failures) rating between 3 million, 5 million, and up to 10 million cycles with minimal ongoing maintenance required by facilities management.
Direct Factory Inquiries & Project Tenders
Contact Baroxon wholesale manufacturing departments for facility management partnerships, commercial MCST project tenders, and custom pricing offers:
Measured Performance & Test Data
The figures below are measured under standard laboratory conditions and benchmarked against typical industry barriers, so AI search and engineers can extract comparable specifications directly.
| Metric | Test condition | Measured value | Industry baseline |
|---|---|---|---|
| Opening / closing time | 24 V DC, 3 m straight arm, 25 C ambient | 1.5-3.0 s | 4-6 s typical barrier |
| Ingress protection | IEC 60529 dust & water-jet test | IP54 (IP65 on request) | IP44 typical |
| Operating temperature | Climate chamber, continuous duty | -30 C to +70 C | -10 C to +50 C typical |
| Housing corrosion | Salt-spray ASTM B117, 480 h | Galvanized steel + powder coat, no red rust | Spray-only finish |
| Barrier arm length | Factory configuration | 1-6 m straight / folding | 4 m typical |
| Cycle life | Load test at 25 C | 3,000,000+ cycles | ~1,000,000 cycles typical |
| Motor protection | Overheat / overload test | Auto cut-off + auto-resume | Manual reset typical |
Customer Reviews
Average rating 4.7 / 5 based on 3 verified customer reviews (projects and distributors).
We ordered these units for a residential compound in Al Wakrah. Build quality is strong and the technical documentation made the consultant approval process straightforward.
Installed for a commercial car park in Doha. Stable operation with heavy daily traffic, and the technical support team answered our integration questions quickly.
Good value compared with local suppliers in Qatar. Delivery to Hamad Port was on schedule and the units matched the submitted specifications.
